Electronics Engineering · CHAPTER 01 · FOCUSED LESSON
A heated cathode, a positive anode and one-way electron flow for radio detection.
A heated cathode supplies electrons. The anode collects them only when its polarity attracts them, turning alternating radio signals into a one-directional response.

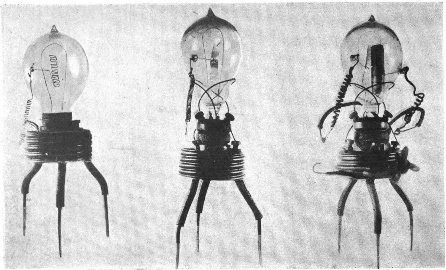

Fleming's thermionic valve contains a heated cathode and an anode separated by vacuum. The vacuum prevents collisions with gas molecules and eliminates a normal material conductor between the electrodes.
The heater raises cathode temperature until electrons escape its surface. This creates an electron cloud near the cathode, ready to respond to the anode's electric field.
When the anode is positive relative to the cathode, the electric field accelerates electrons across the vacuum toward the anode. Electron flow inside the tube is cathode → anode; conventional current in the external circuit is opposite.
The valve conducts during the polarity that attracts electrons. Its current is limited by cathode emission, space charge and circuit resistance.
Reverse the polarity and the anode repels electrons. Because the anode is not heated, it does not supply an equivalent reverse stream. Current falls almost to zero, giving the device its rectifying action.
Radio reception required rectifying a high-frequency alternating signal to recover its slower information envelope. Fleming's 1904 valve did this more predictably than the delicate cat-whisker detector, whose fine wire had to touch the correct point on a galena crystal.
Electron motion appears only with the heater on and forward polarity. Conventional-current direction is labelled separately.
THE IDEA TO REMEMBERHeating creates electrons; polarity decides whether the anode can collect them. Both conditions are necessary for conduction.
CATHODE
Heated electron emitterANODE
Positive collector in forward biasFUNCTION
One-way rectificationCOURSE SOURCE · “ELECTRONICS AND TECHNOLOGY” · ALI CHOURBA
